View projectVersoix Bridge
Detailed inspection of Versoix bridge using drones.
- Client
- FEDRO / OFROU / ASTRA
- Location
- Versoix, CH
- Material
- Concrete
Concrete · Motorway infrastructure
Drone inspection of the Versoix bridge
Structure and inspection scope
The project included an image-based inspection of the entire bridge at a spatial resolution of approximately 0.60 mm per pixel, with particular attention given to the underside and other difficult-to-access structural elements.
Inspection methodology

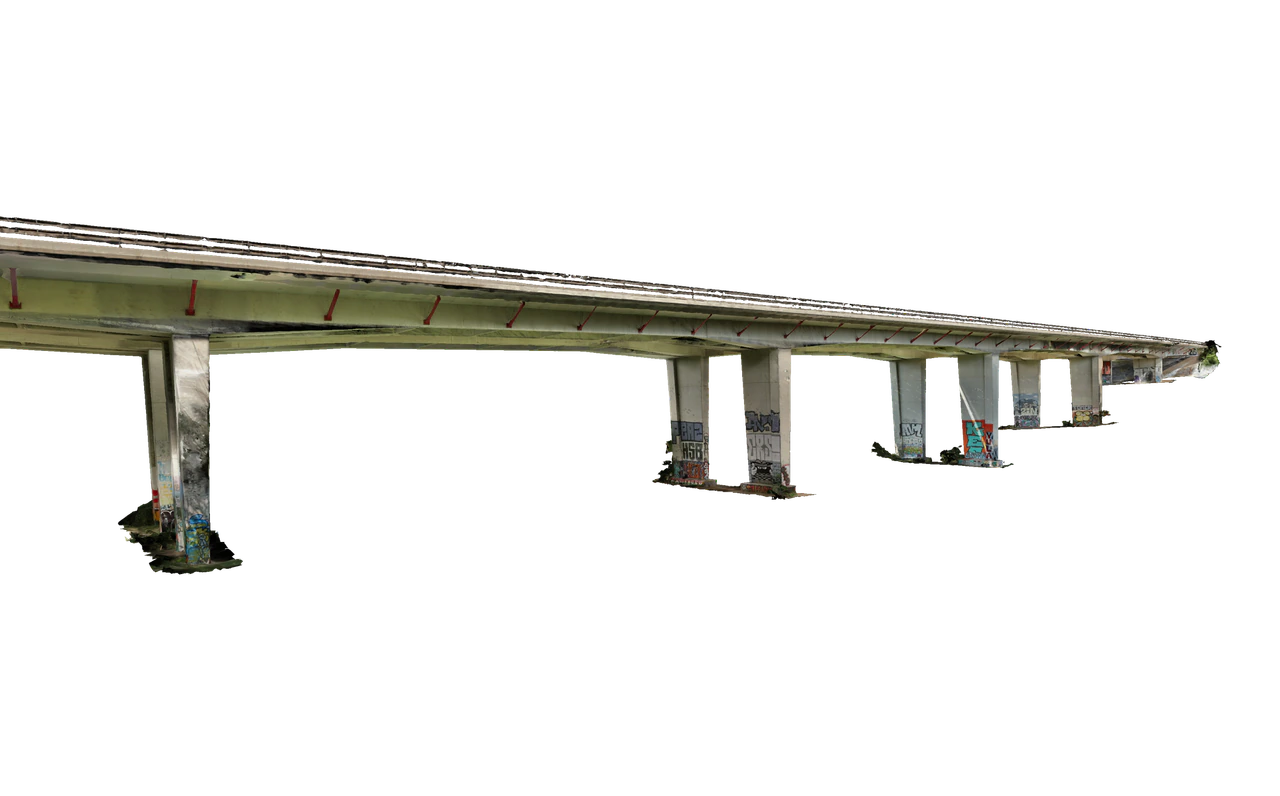

Drone imagery was collected and analysed to produce a 3D model with detailed damage data. The drone-based inspection reduced reliance on under-bridge access platforms and provided a 3D basis for monitoring damage evolution in future inspection.
Inspection results
The detected damage types included cracks, concrete spalling, and rebar exposure. It formed a basis for structural assessment by civil engineers.

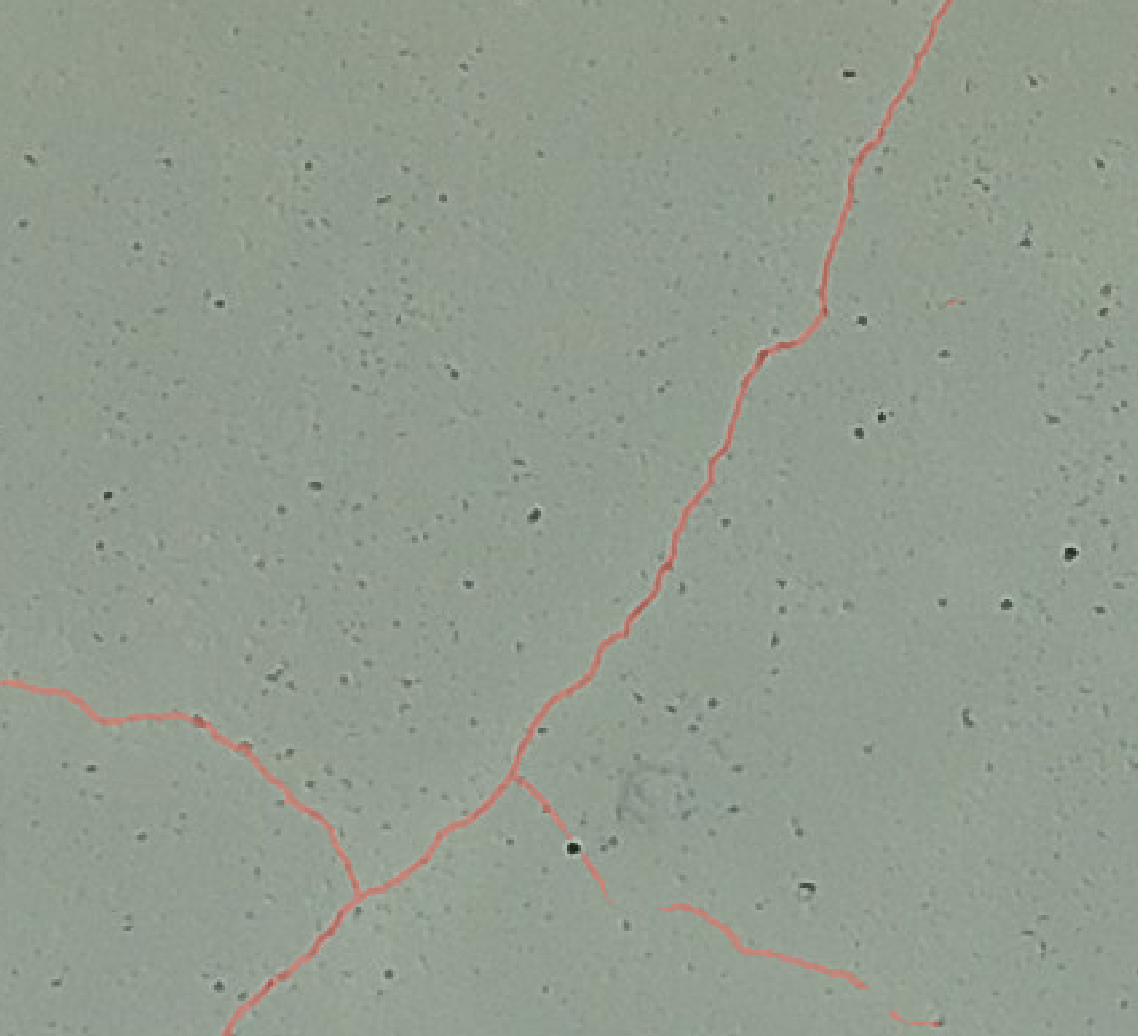

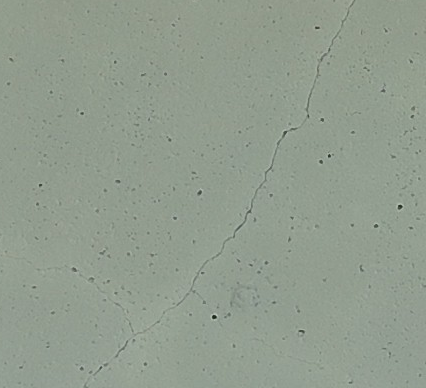

Result examples
